Internal Rotational Inspection System
Our Case Studies
Internal Rotational Inspection System Services
What Is IRIS
IRIS is an advanced ultrasonic method for non-destructive testing of pipes and tubes.
It is suitable for both ferrous and non-ferrous materials.
Equipment We Use
How IRIS Works:
Water-Flooded Tubes:

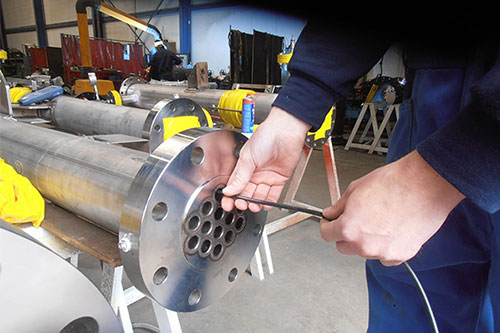

- An IRIS probe is inserted into a tube filled with water.
Ultrasonic Pulse Generation:
- The probe’s transducer emits ultrasonic pulses parallel to the tube’s axis.
Rotating Mirror:
- A mirror, rotated by a turbine, directs pulses into the tube wall.
Reflection Analysis:
- Pulses reflect off the inner and outer walls.
- The time-of-flight difference reveals wall thickness.
Helical Scan Path:
- The probe’s withdrawal creates a spiral scan, ensuring complete coverage.
Advantages of Choosing IRIS
Benefits of IRIS Testing:
Material Compatibility:
- Effective for various materials.
Defect Detection:
- Identifies corrosion, pitting, and wall loss.
Measurement Accuracy:
- Provides precise wall thickness measurements.
Defect Sensitivity:
- Sensitive to both internal and external defects.
Defect Localization:
- Pinpoints defect positions in relation to tube length.
Complete Coverage:
- Achieves 100% inspection coverage.
Data Storage:
- Allows for results data storage.
Inspection Flexibility:
- Serves as a backup to other inspection methods.
Why Masterscan?
Our NDT inspectors bring years of experience to IRIS testing. We offer accurate assessments and Total Quality Assurance for your assets.
For more information on our IRIS Testing capabilities or to schedule an inspection, contact Masterscan today. We’re dedicated to ensuring the integrity and safety of your operations with our comprehensive inspection solutions.
